COBOTS OFFER GAME CHANGING BENEFITS
WE ARE IOWA'S ONLY UNIVERSAL ROBOT TRAINING FACILITY
Don't Wait to Automate!
MSD Sales offers an extensive line of cost-effective cobots, arm attachments and bundles. The expert MSD team will provide installation, training and service for seamless integration into your facility.
MSD ROBOT BUNDLES
FIND YOUR ROBOT APPLICATION NOW
- MSD Robot Bundles starting with an investment of -
$59,900
%202.jpeg)
.jpg)
What makes a robot collaborative?
The safety is built into the robot arm making it a “cobot”. This means there is generally no need for a cage and other safety equipment which makes it possible to safely work with humans.

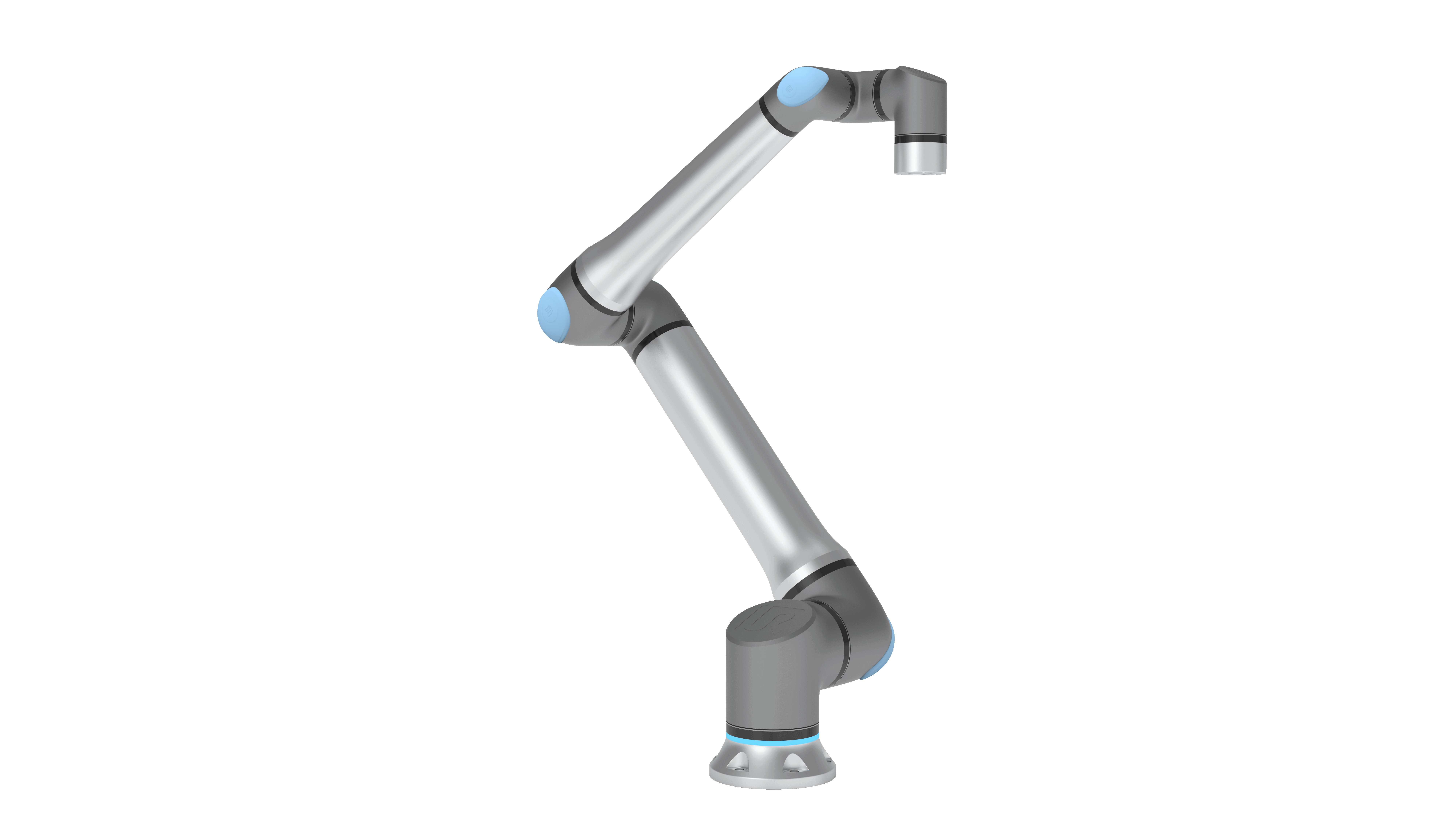

OUR ROBOT LINE
COLLABORATIVE INDUSTRIAL ROBOT
UR3e
6.6 lbs
3 kg
PAYLOAD
REACH
19.7 in
500 mm
BASE DIAMETER FOOTPRINT
5.04 in
128 mm
WEIGHT
24.7 lbs
11.2 kg
COLLABORATIVE INDUSTRIAL ROBOT
UR5e
PAYLOAD
11 lbs
5 kg
REACH
33.5 in
850 mm
BASE DIAMETER FOOTPRINT
5.87 in
149 mm
WEIGHT
45.4 lbs
20.6 kg
COLLABORATIVE INDUSTRIAL ROBOT
UR10e
PAYLOAD
27.5 lbs
12.5 kg
REACH
51.2 in
1,300 mm
BASE DIAMETER FOOTPRINT
7.48 in
190 mm
WEIGHT
73.9 lbs
33.5 kg
COLLABORATIVE INDUSTRIAL ROBOT
UR16e
PAYLOAD
35.3 lbs
16 kg
REACH
35.4 in
900 mm
BASE DIAMETER FOOTPRINT
7.48 in
190 mm
WEIGHT
73 lbs
33.1 kg
Couldn't find a bundle that suits your needs? No Problem!
UNIVERSAL BUNDLE
Schedule a time for us to see your current job you would like to automate and we will build you a custom quote immediately.
IS A COBOT THE RIGHT FIT FOR YOU?
Here are a few questions to consider.
Is your capacity limited because of labor?
Do you have unused equipment on your floor because of labor shortages?
Do you need to maximize floor space usage?
Do you have parts smaller than 144 mm (5.67 in) diameter or width?
Do you have two machines you’d like to run together?
Could you use an inbound/outbound system for an existing cell?
Do you need to load/unload saws, lathes, and mills?
Would you like to increase utilization on a machine with a 30+ second cycle time?
MORE SPECS
Performance | UR3e | UR5e | UR10e | UR16e |
|---|---|---|---|---|
Power Consumption | 300 W | 570 W | 615 W | 350 W |
Max Power Consumption Typical w/Moderate Settings | 100 W | 200 W | 350 W | 585 W |
Safety | 17 config settings | 17 config settings | 17 config settings | 17 config settings |
Certifications | EN ISO 13849-1, PLd Category 3 and EN ISO 10218-1 | EN ISO 13849-1, PLd Category 3 and EN ISO 10218-1 | EN ISO 13849-1, PLd Category 3 and EN ISO 10218-1 | EN ISO 13849-1, PLd Category 3 and EN ISO 10218-1 |
Force Sensing Tool Flange | ||||
Range Force | 30.0 N | 50.0 N | 100.0 N | 160.0 N |
Range Torque | 10.0 Nm | 10.0 Nm | 10.0 Nm | 10.0 Nm |
Precision Force | 2.0 N | 3.5 N | 5.0 N | 5.0 N |
Precision Torque | 0.1 Nm | 0.2 Nm | 0.2 Nm | 0.2 Nm |
Accuracy Force | 3.5 N | 4.0 N | 5.5 N | 5.5 N |
Accuracy Torque | 0.1 Nm | 0.3 Nm | 0.5 Nm | 0.5 Nm |
Movement | UR3e | UR5e | UR10e | UR16e |
|---|---|---|---|---|
Pose Repeatability per ISO 9283 | ||||
Base Working Range | +360° | +360° | +360° | +360° |
Base Maximum Speed | +180°/s | +180°/s | +120°/s | +120°/s |
Shoulder Working Range | +360° | +360° | +360° | +360° |
Shoulder Maximum Speed | +180°/s | +180°/s | +120°/s | +120°/s |
Elbow Working Range | +360° | +360° | +360° | +360° |
Elbow Maximum Speed | +180°/s | +180°/s | +180°/s | +180°/s |
Wrist 1 Working Range | +360° | +360° | +360° | +360° |
Wrist 1 Maximum Speed | +360°/s | +180°/s | +180°/s | +180°/s |
Wrist 2 Working Range | +360° | +360° | +360° | +360° |
Wrist 2 Maximum Speed | +360°/s | +180°/s | +180°/s | +180°/s |
Wrist 3 Working Range | Infinite | +360° | +360° | +360° |
Wrist 3 Maximum Speed | +360°/s | +180°/s | +180°/s | +180°/s |
Physical | UR3e | UR5e | UR10e | UR16e |
|---|---|---|---|---|
Footprint | 128 mm | 149 mm | 190 mm | 190 mm |
Tool Connector Type | M8 / M8 8-PIN | M8 / M8 8-PIN | M8 / M8 8-PIN | M8 / M8 8-PIN |
Cable Length | 236” | 236” | 236” | 236” |
Weight (including cable) | 24.7 lbs | 45.4 lbs | 73.9 lbs | 73 lbs |
Control Box | UR3e | UR5e | UR10e | UR16e |
|---|---|---|---|---|
IP Classification | IP44 | IP44 | IP44 | IP44 |
ISO 14644-1 Class Cleanroom | 6 | 6 | 6 | 6 |
Operating Temperature Range | 0-50°C | 0-50°C | 0-50°C | 0-50°C |
I/O Power Supply | 24V 2A | 24V 2A | 24V 2A | 24V 2A |
Power Source | 100-240VAC, 47-440Hz | 100-240VAC, 47-440Hz | 100-240VAC, 47-440Hz | 100-240VAC, 47-440Hz |
Humidity | 90%RH (non-condensing) | 90%RH (non-condensing) | 90%RH (non-condensing) | 90%RH (non-condensing) |
Teach Pendant | UR3e | UR5e | UR10e | UR16e |
|---|---|---|---|---|
IP Classification | IP54 | IP54 | IP54 | IP54 |
Humidity | 90%RH (non-condensing) | 90%RH (non-condensing) | 90%RH (non-condensing) | 90%RH (non-condensing) |
Display Resolution | 1280 x 800 pixels | 1280 x 800 pixels | 1280 x 800 pixels | 1280 x 800 pixels |
